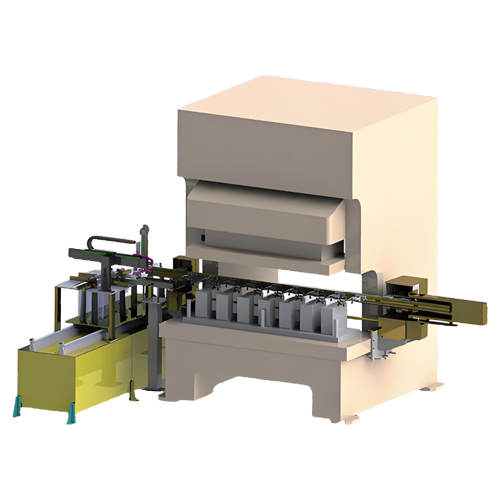

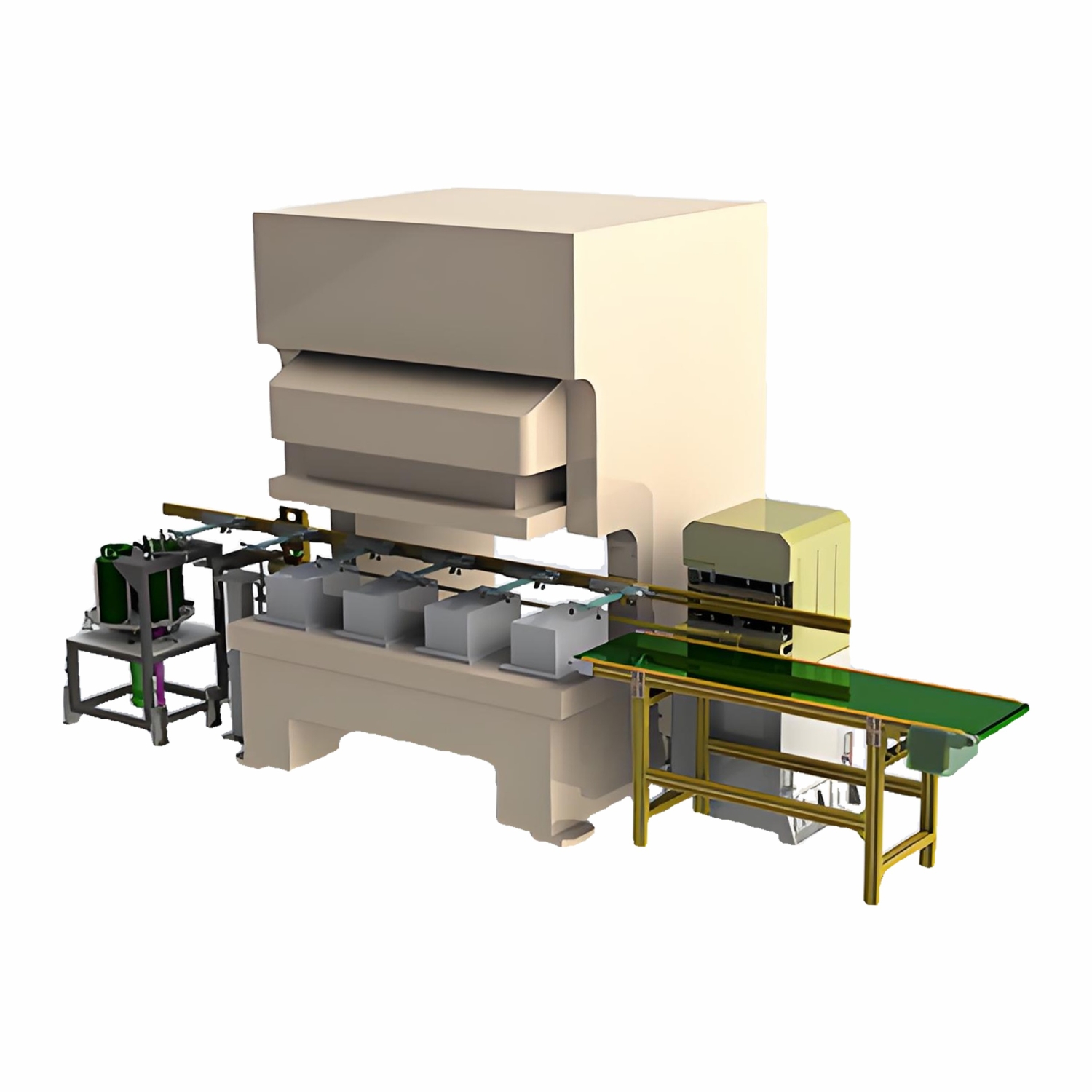

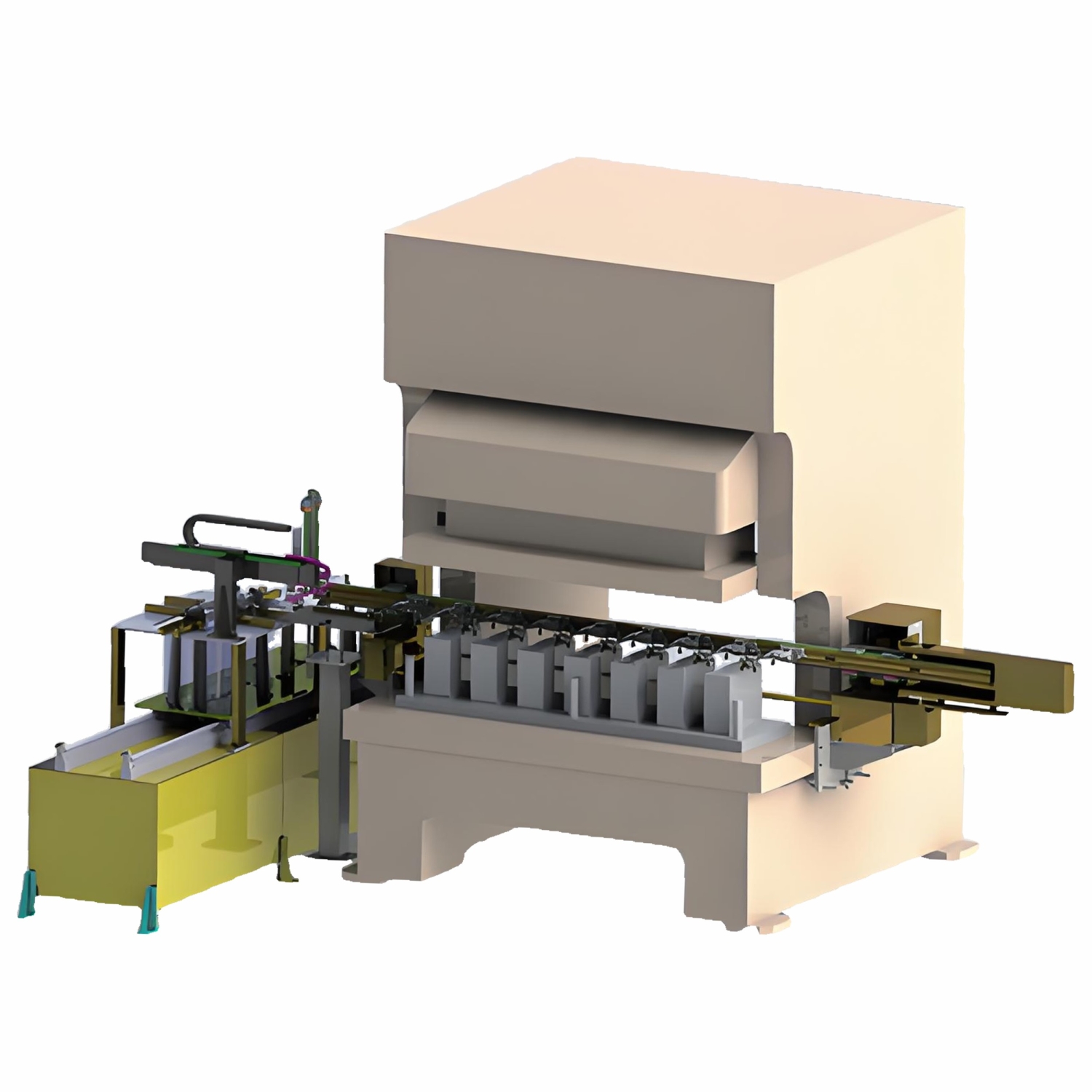

Single rod manipulator
QE-2D-R-200/300/450/600-60
- Suitable for multi-station, horizontal-feeding stamping automation production line.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Equipped with HMI, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 机台参数（parameters） | ||||
| 型号（Model） | QE-2D-R-200-60 | QE-2D-R-300-60 | QE-2D-R-450-60 | QE-2D-R-600-60 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 200 | 300 | 400 | 500 |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | / | |||
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 0~60 | |||
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 20 （12） | |||
定位精度 (mm) Positioning precision | +0.2 | |||
装机功率 (Kw) Installed Power | 2.6 | |||
工作气源要求 (Mpa[Kgf/cm?]) Working air requirement | 0.5~0.7 | |||
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
