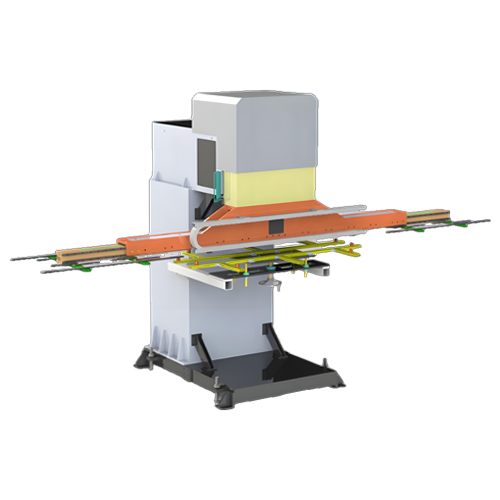

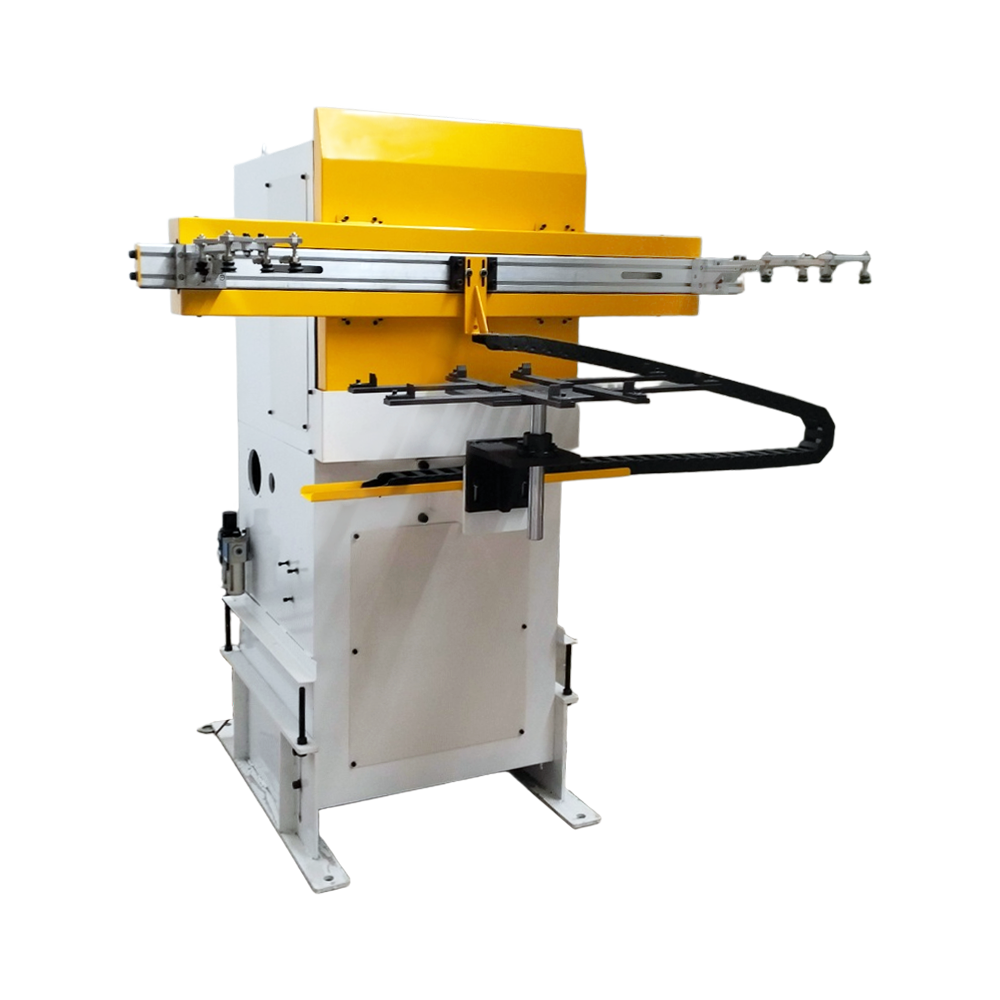

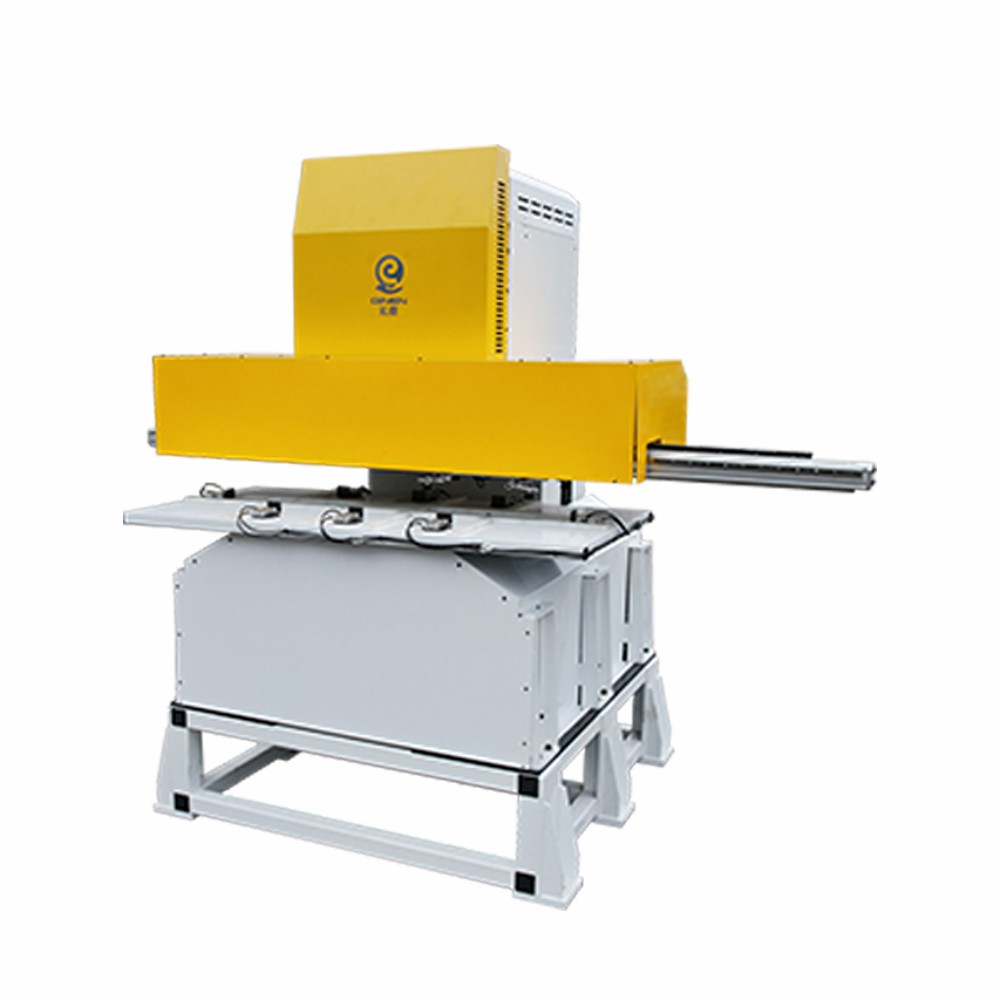

Solo manipulator
QE-2D-D-1200/2500/3000/3500-120
- Suitable for multi-station, horizontal-feeding stamping automation production line.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Equipped with HMI, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 参数（parameters） | ||||
| 型号（Model） | QE-2D-1200-150 | QE-2D-2500-150 | QE-2D-3000-150 | QE-2D-3500-150 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 1200 | 2500 | 3000 | 3500 |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | / | |||
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 0~120 | |||
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 40 （8） | |||
定位精度 (mm) Positioning precision | +0.2 | |||
装机功率 (Kw) Installed Power | 7.5 （QE-2D-1200-150：3.6） | |||
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
