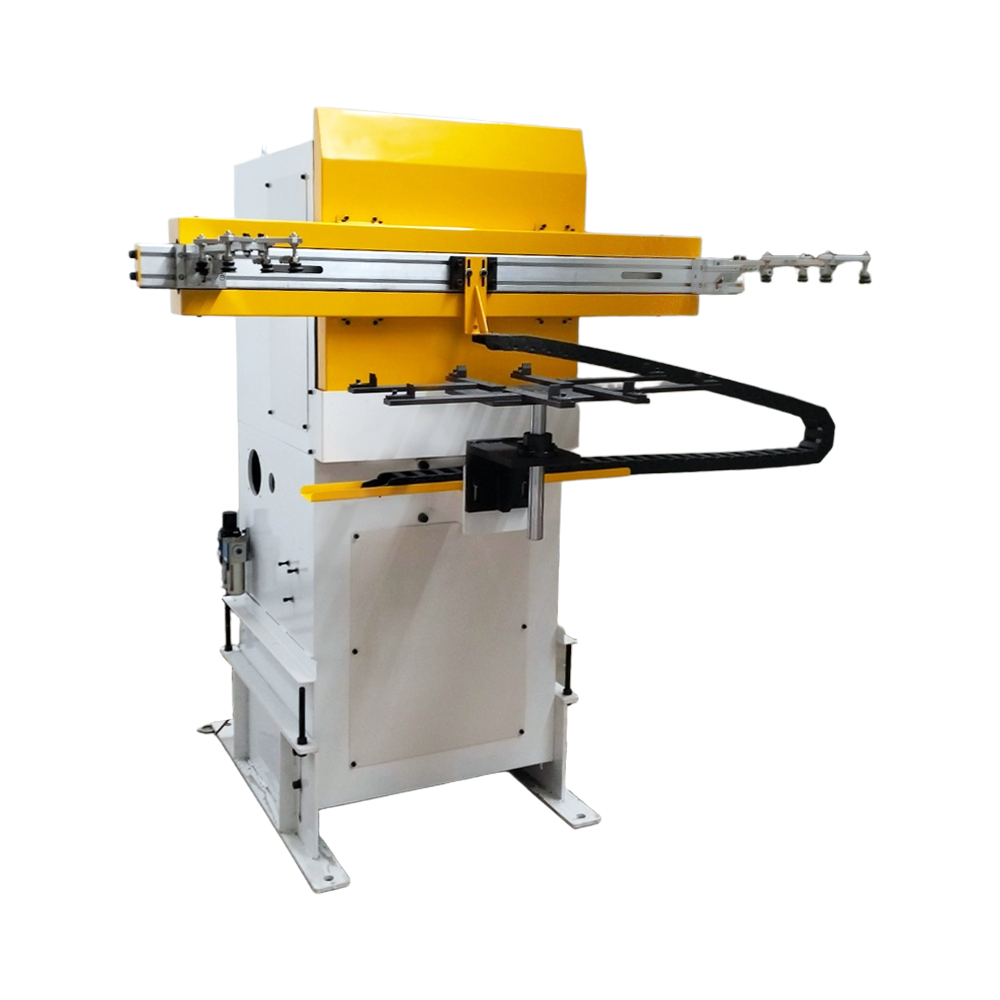

D2H32520-4
-机身固定于冲床间,避免因震动影响机械手工作,稳定性好;
-传动机构采用双滑块,动作灵敏,高速度;
-市场应用:家电类、汽车壳体类、钣金类;
-冲床前面开放,易更换模具和易保养,采用光纤通讯,传输快,抗干扰强;
-操作面板配有人机界面,易监控操作;
-驱动机构皆采用伺服控制,精度高,可搬运较重工件。
-The fuselage is fixed in the punching room to avoid affecting the work of the manipulator due to vibration, and has good stability;
-Transmission mechanism adopts double sliding block, sensitive action, high speed;
-Market applications: Home appliances, automotive shell, sheet metal;
-The front of the punch is open, easy to replace the mold and easy to maintain, using optical fiber communication, fast transmission, strong anti-interference;
-The operation panel is equipped with man-machine interface, easy to monitor and operate;
-The driving mechanism adopts servo control, which has high precision and can handle heavy parts.
全国服务热线:
400-166-2658
电子邮箱:sales@qinfeng-gp.com
官方网站:qinen.qinfeng-gp.com
机台参数 | ||||
型号 Model number |
D2H20020 | D2H25020 | D2H30020 | D2H35020 |
移动行程(X轴) Moving stroke(X-axes) |
2000mm | 2500mm | 3000mm | 3500mm |
移动行程(Z轴) Moving stroke(Z-axes) |
0-200mm | |||
取料方式 Pick-up |
真空吸盘/电吸盘/夹爪 Vacuum chuck/Magnetic chuck/Champing jaw |
|||
压力机吨位 Punch |
80-630T★具体以实际台面为准 The actual table prevails |
轴方向 Axial direction |
X 、Z 轴 X ,Z axes |
|
压力机行程 Punch stroke |
除产品高度上下模大于200mm In addition to the product height, the upper and lower die is greater than 200mm |
夹具 clamp |
单独设计 Separate design |
|
运动方式 Mode of movement |
单冲/编码器联动 Single punch/encoder linkage |
负载重量 Load weight |
3-15kg | |
安装方式 Installation mode |
主机落地式 Main engine floor type |
高配款 High configuration |
伺服系统 Servo system |
三菱/安川 Mitsubishi/Yaskawa |
运控系统 Sport CPU |
三菱/安川Mitsubishi/Yaskawa | |||
上料方式 Loading method |
料架上料/送料机上料 Rack stock/Feeding machine |
经济款 economy configuration |
伺服系统 Servo system |
汇川 INOVANCE |
运行节拍 Running beat |
MIN:8pcs/min MAX:14pcs/min |
运控系统 Sport CPU |
汇川 INOVANCE |
|
运行方向 Running direction |
左到右 Left to right |
右到左 Right to left |
