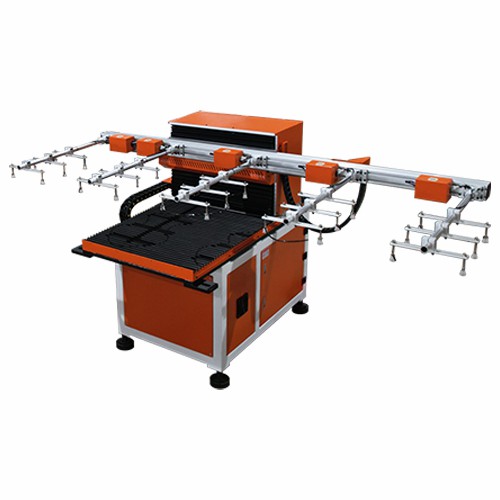

Solo multi-station manipulator
QE-3D-R-S-500/700-150
- Suitable for multi station handling, feeding, stamping automation production lines.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Each arm is equipped with a sensor detection device, when no materialis detected, it willautomatically alarm.
- Equipped with HMI, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 机台参数（parameters） | ||
| 型号（Model） | QE-3D-R-S-500-150 | QE-3D-R-S-700-150 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 500 | 500 |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | / | 700 |
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 0~150 | |
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 25 （15） | |
定位精度 (mm) Positioning precision | +0.2 | |
装机功率 (Kw) Installed Power | 3.5 (2驱动单元) (two driving unit) / 6 (3驱动单元) (three driving unit) | |
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
