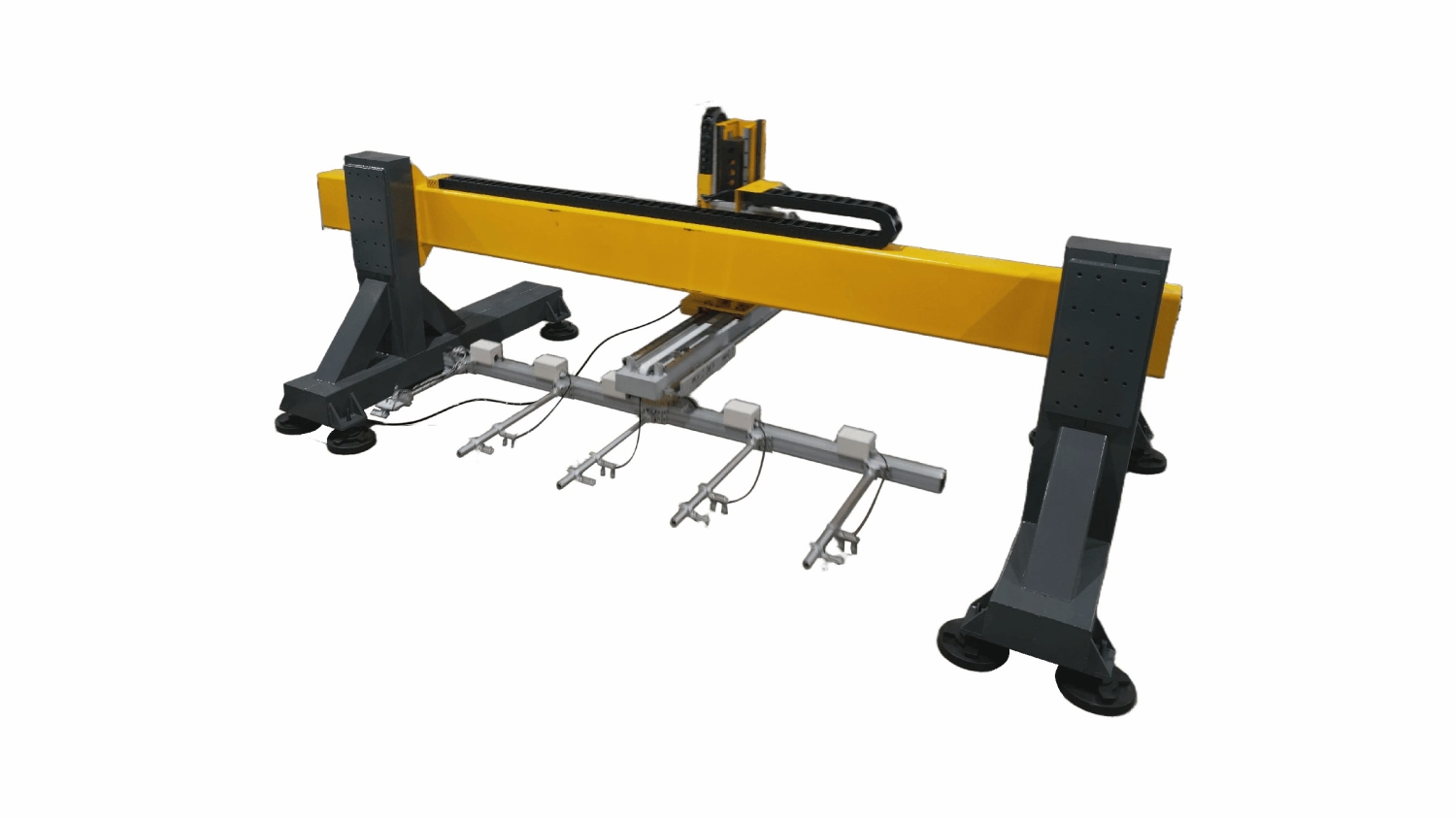

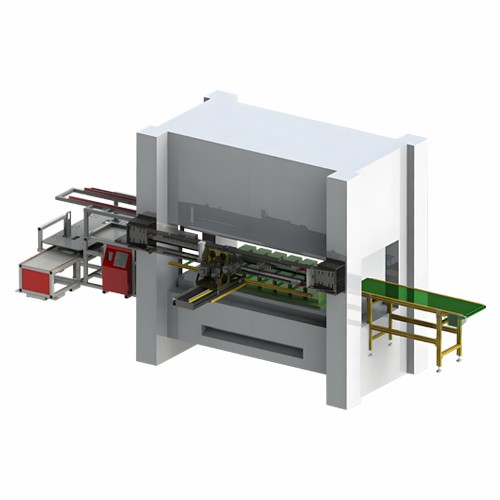

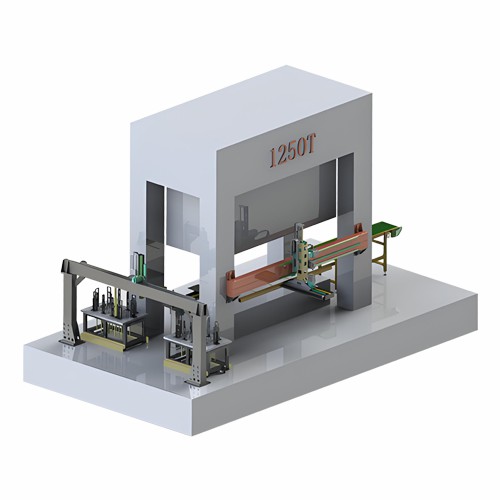

Three Dimension (Wall mounted) manipulator
QE-3D-W-400/600/800/1000-1500-300
- Suitable for multi station handling, feeding, stamping automation production lines.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Each arm is equipped with a sensor detection device, when no materialis detected, it willautomatically alarm.
- Equipped with HMI, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 参数（parameters） | ||||
| 型号（Model） | QE-3D-W-400-1500-300 | QE-3D-W-600-1500-300 | QE-3D-W-800-1500-300 | QE-3D-W-1000-1500-300 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 400 | 600 | 800 | 1000 |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | 1500 | |||
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 300 | |||
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 14 （8） | |||
定位精度 (mm) Positioning precision | +0.2 | |||
装机功率 (Kw) Installed Power | 45（12驱动单元） (Twelve driving unit) | |||
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
