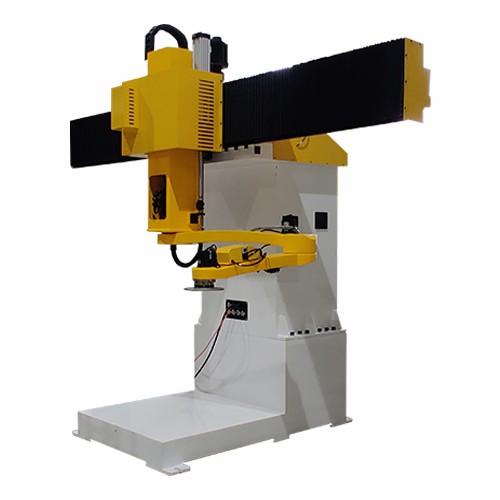

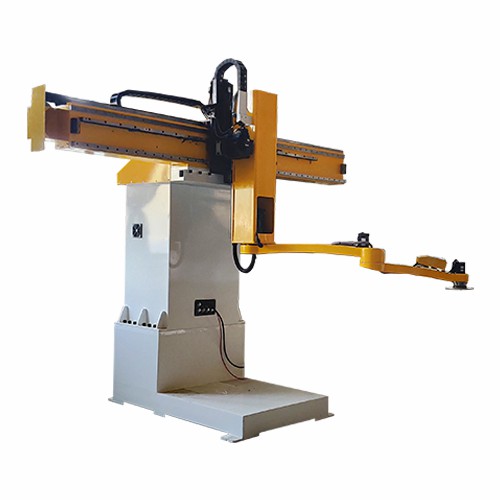

Truss joint manipulator
QE-HJ-D-X-1300-450
- It is suitable for multi-station, small side opening punch presses series line automation production line.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Optical fiber communication is adopted, the signaltransmission is fast, and the anti-interference is strong.
- Equipped with HMIl, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 参数（parameters） | |
| 型号（Model） | QE-HJ-D-X-1300-450 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 客户定制 (Customized) |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | 0~1300 |
各关节运动范围(°) (最大速度)(°/S) Motion range | J1 160 (171.4) J2 360 (283.9) J2 300 (191.4) |
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 0~450 |
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 8 （6） |
定位精度 (mm) Positioning precision | +0.1 |
装机功率 (Kw) Installed Power | 8 |
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
