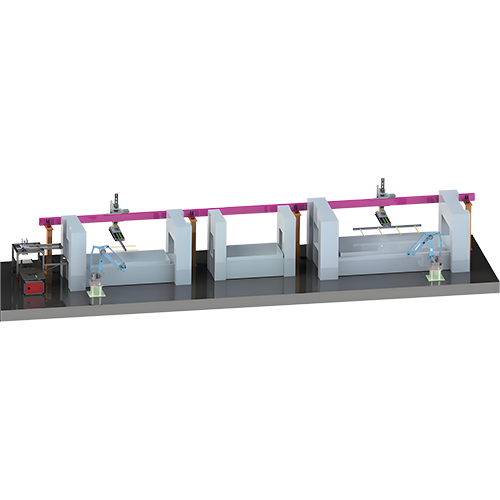

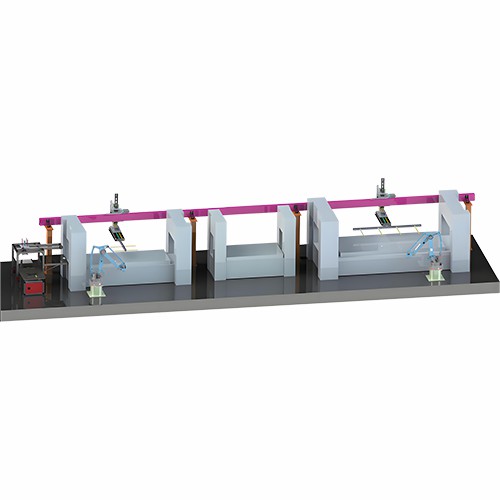

Truss manipulator
QE-HJ-2000/3000/4000/5000-1500-300
- It is suitable for multi-station, small side opening punch presses series line automation production line.
- Servo control is adopted, with high precision and strong bearing capacity.
- Adopting PLC control to improve product compatibility and flexibility.
- Optical fiber communication is adopted, the signaltransmission is fast, and the anti-interference is strong.
- Equipped with HMIl, easy to operate and monitor.
Service Hotline：
400-166-2658
Email：sales@qinfeng-gp.com
Website：qinen.qinfeng-gp.com
| 参数（parameters） | ||||
| 型号（Model） | QE-HJ-2000-1500-300 | QE-HJ-3000-1500-300 | QE-HJ-4000-1500-300 | QE-HJ-5000-1500-300 |
移动行程（X轴）(mm) Moving stroke（X-axes） | 2000 | 3000 | 4000 | 5000 |
移动行程（Y轴）(mm) Moving stroke（Y-axes） | 0~1500 | |||
移动行程（Z轴）(mm) Moving stroke（Z-axes） | 0~300 | |||
最快节拍*(pcs/min)Maximum SPM (最小节拍(Minimum SPM)) | 14 （8） | |||
定位精度 (mm) Positioning precision | +0.2 | |||
装机功率 (Kw) Installed Power | 10 (1驱动单元) (Single driving unit) | |||
★行程可根据客户需求定制 Can be customized according to customer's requirements
*视产品大小 Depends on size of piece
